Copper Busbar

The Copper Busbar range offers multiple specifications and materials, with precision machining and custom production available on request.

Copper Busbar

Copper Busbar

Copper Busbar
01

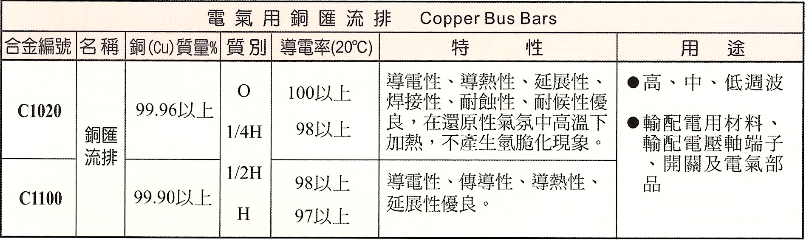

銅排1.pngChemical Composition, Characteristics & Applications

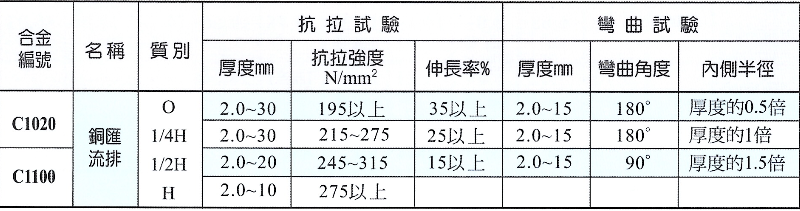

Mechanical Properties



Specifications & Dimensions


Legend: R＝RF (Round Edge)｜ S＝SE (Square Edge)｜ R****S＝Available in both RF (Round Edge) and SE (Square Edge)

Width W＼Thickness t
kg/m		3mm4mm5mm6mm8mm10mm12mm15mm20mm25mm30mm
15mm0.40
RS		0.53
RS		0.67
S		0.80
RS		1.07
S		1.34
S
20mm0.53
S		0.71
RS		0.89
RS		1.07
RS		1.42
S		1.78
S		2.14
S
25mm0.67
RS		0.89
RS		1.11
RS		1.34
RS		1.78
RS		2.23
S
30mm0.80
RS		1.07
S		1.34
RS		1.60
RS		2.14
RS		2.67
RS		3.20
S		4.01
S		5.34
S
40mm1.07
RS		1.42
RS		1.78
RS		2.14
RS		2.85
RS		3.56
RS		4.27
S		5.34
RS		7.12
S
50mm1.34
S		1.78
S		2.23
RS		2.67
RS		3.56
RS		4.45
RS		5.34
RS		6.68
RS		8.90
S		11.13
S		13.44
S
60mm1.60
RS		2.14
S		2.67
RS		3.20
RS		4.27
S		5.34
RS		6.41
RS		8.01
RS		9.92
R
70mm1.87
S		3.12
S		3.74
RS		4.98
RS		6.23
RS		7.20
R		9.35
S
75mm2.00
S		3.34
S		4.01
RS		6.68
RS		7.74
R
80mm2.85
S		3.56
RS		4.27
RS		5.70
RS		7.12
RS		8.54
S		10.68
RS		14.29
RS		17.86
RS
90mm3.20
S		4.81
RS		6.41
S		8.01
RS		9.61
S		16.02
S
100mm2.65
R		4.45
RS		5.34
RS		7.12
RS		8.90
RS		10.68
RS		13.35
S		17.80
RS		22.40
S		26.88
S
120mm4.27
S		5.34
S		6.41
RS		8.54
S		10.68
RS		12.82
RS		15.59
R		23.36
S
150mm3.99
R		6.68
S		8.01
RS		10.59
R		13.35
RS		15.75
R		19.60
R		26.88
S		33.60
S		40.32
S
160mm5.70
S		7.12
RS		8.54
RS		11.31
R		14.24
RS		16.81
R		21.36
S
200mm8.93
S		10.68
RS		14.34
RS		17.80
S		21.36
S		26.70
S		35.84
RS		44.80
S		53.76
S

  • *Special specifications can be manufactured to customer requirements ** The weights listed above are calculated to standard values
