Chromium Copper
Ming Copper
Ming Copper
Chemical Composition, Hardness and Electrical Conductivity
| Product Name | Chemical Composition (%) | Hardness (HBR) | Conductivity % (20℃) |
|---|---|---|---|
| Chromium Copper YCC | Cu：99 Cr：0.5～1 | 72 min | 75 min |
| Chromium Zirconium Copper YCCZ | Cu：98.5 Cr：0.5～1 Zr：0.2 | 75 min | 75 min |
| Beryllium Copper YCBC | Be：1.6～2.0 Co：0.6 Cu：Re | 34 min | 22 min |
| Tungsten Copper YCU-W | Cu：30 W：70 | 80 min | 28 min |

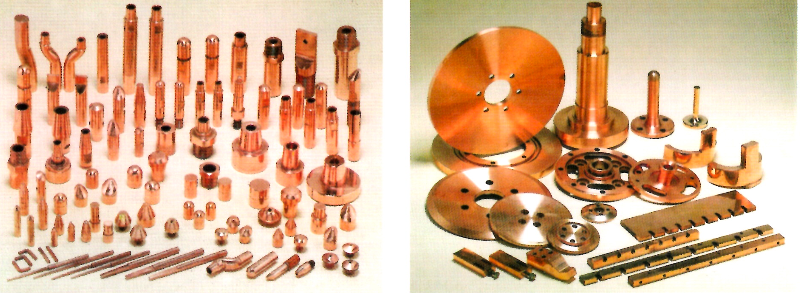

Specifications, Dimensions, Characteristics and Applications
| Description | Specification | |
|---|---|---|
| Chromium Copper Bar (C.C.Bar) | O.D. 2mm～200mm | Length 1000mm |
| Chromium Copper Plates (C.C.Plates) | Thickness 2mm～150mm | Width 50mm～300mm |
| Chromium Copper Disks (C.C.Disks) | Thickness 5t～100t | Diameter 50φ～550φ |
Applications: EDM (Electrical Discharge Machining), Spot Welding, Electrical Machinery Components, Seam Welding, Automotive Industry
