Copper Plate
Copper Sheet
Copper Sheet
Chemical Composition
| Alloy No. | Name | Chemical Composition (%) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copper (Cu) | Lead (Pb) | Iron (Fe) | Tin (Sn) | Zinc (Zn) | Manganese (Mn) | Nickel (Ni) | Beryllium (Be) | Titanium (Ti) | Phosphorus (P) | |||
| C1020 | Oxygen-Free Copper | 99.96 min. | ||||||||||
| C1100 | Tough Pitch Copper | 99.90 min. | ||||||||||
| C1201 | Phosphorus Deoxidized Copper | 99.90 min. | 0.004～ 0.014 | |||||||||
| C1220 | 99.90 min. | 0.015～ 0.040 | ||||||||||
| C1921 | Iron-Copper Alloy | Rem. | 0.05～ 0.15 | 0.015～ 0.050 | ||||||||
| C1940 | Rem. | 0.03 max. | 2.1～ 2.6 | 0.05～ 0.20 | 0.015～ 0.150 | Other impurities 0.2 max. | ||||||
| C2100 | Red Brass | 94.0～ 96.0 | 0.03 max. | 0.05 max. | Rem. | |||||||
| C2200 | 89.0～ 91.0 | 0.05 max. | 0.05 max. | Rem. | ||||||||
| C2300 | 84.0～ 86.0 | 0.05 max. | 0.05 max. | Rem. | ||||||||
| C2600 | Brass | 68.5～ 71.5 | 0.05 max. | 0.05 max. | Rem. | |||||||
| C2680 | 64.0～ 68.0 | 0.05 max. | 0.05 max. | Rem. | ||||||||
| C2720 | 62.0～ 64.0 | 0.07 max. | 0.07 max. | Rem. | ||||||||
| C2801 | 59.0～ 62.0 | 0.10 max. | 0.07 max. | Rem. | Cu+Sn+P 99.5 min. | |||||||
| C5102 | Phosphor Bronze | 0.02 max. | 0.10 max. | 4.5～ 5.5 | 0.20 max. | 0.03～ 0.35 | Cu+Sn+P 99.5 min. | |||||
| C5191 | 0.02 max. | 0.10 max. | 5.5～ 7.0 | 0.20 max. | 0.03～ 0.35 | Cu+Sn+P 99.5 min. | ||||||
| C5212 | 0.02 max. | 0.10 max. | 7.0～ 9.0 | 0.20 max. | 0.03～ 0.35 | Cu+Sn+P 99.5 min. | ||||||
| C7060 | Cupronickel (Copper-Nickel Alloy) | 0.02 max. | 1.0～ 1.8 | 0.5 max. | 0.20～ 1.0 | 9.00～ 11.0 | Cu+Ni+Fe+Mn 99.5 min. | |||||
| C7150 | 0.02 max. | 0.40～ 1.0 | 0.5 max. | 0.20～ 1.0 | 29.0～ 33.0 | Cu+Ni+Fe+Mn 99.5 min. | ||||||
| C7521 | Nickel Silver | 62.0～ 66.0 | 0.03 max. | 0.25 max. | Rem. | 0.0～ 0.50 | 16.5～ 19.5 |

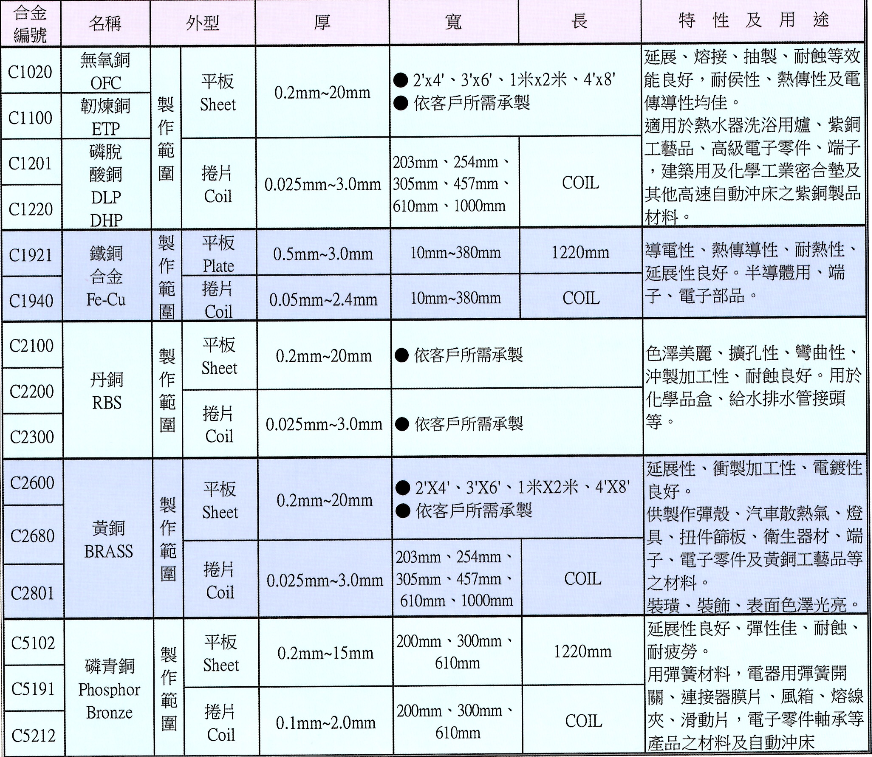

Specifications, Dimensions, Characteristics & Applications

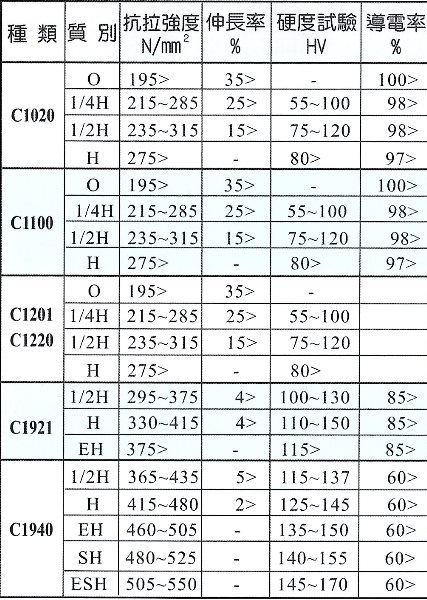

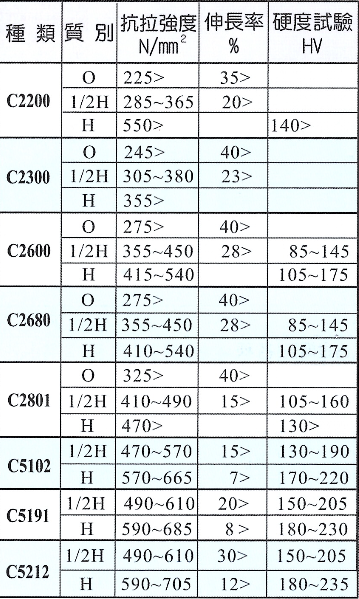

Mechanical Properties

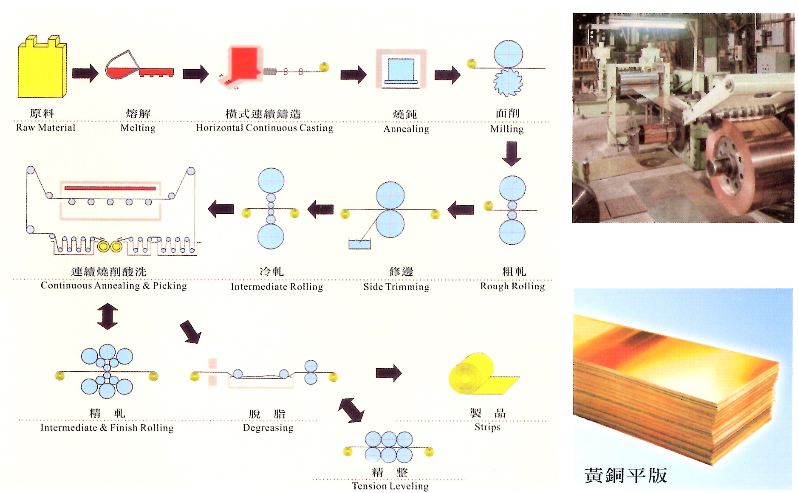

Production Flow Chart
